Revolutionary Valve with Customizable Options

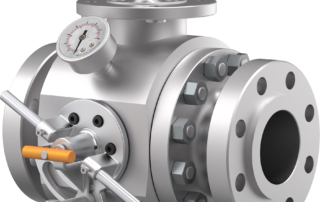

Pig Valves

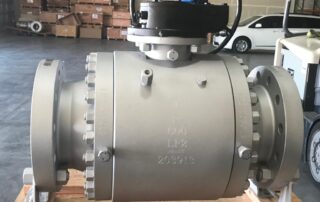

A completely revolutionary valve technology that improves the accessibility to the central components for easy maintenance and repair. Our pig valve comes with several customization options to fit your required needs.

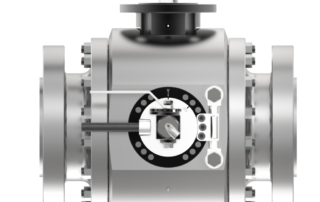

No scaffolding required, as the hatch provides quick access to the torso for no hassle loading & unloading without the worry of crushed fingers. This system requires full cavity pressure relief before the latch can be freed while avoiding traditional threaded cap technology that can easily get difficult to operate and rusted in the field.

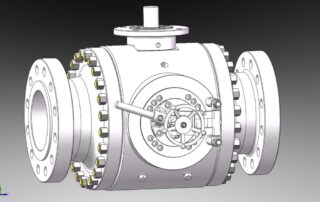

Take a Look Inside!

Superior Parts for a Superior Valve

1. Forged Body – Provides structual integrity.

2. Ball – Maximized sealing surface for reliable isolation.

3. Catcher Plate – Prevents overtravel of pig and contains it in the bore of the ball.

4. Seat – Provides a perfect seal.

5. Body Seal – Prevents leakage to atmosphere. Variety of materials available to suit application.

6. Stem Seal – Protects against leakage to atmosphere.

7. Trunnion Bearing – Helps ensure consistent operating torque.

8. Stem – High strength for maximum safety.

9. ISO Mounting Bracket – Standardizes gear and actuator mounting.

10. EZ Loader Closure – Patent pending loading system allowing side access and ultimate in safety.

11. Safety Valve – Prevents opening of closure without proper cavity ball bore pressure relief.

12. EZ Loader Handle – Allows release of EZ Loader lock once cavity pressure is relieved allowing access.

13. Ball Bore and Cavity Relief – Allows pressure contained in ball bore to be relieved in order for closure to be opened.

Dimensions & Ranges

Design Options

  • Size Range:
    3” to 16” *

  • Pressure Range:
    Class 150 thru 1500 *

  • End Connections:
    Flanged RF, RTJ, Buttweld Ends *

  • Inspection and Testing:
    API 6D Tested

  • Pressure-Temperature Ratings:
    ASME B16.34

Refer to catalog for dimensional information.
*Consult sales team for additional sizes, pressure classes and end connections.
