Customizable Valves for Complex Applications

Cast Steel Gate Valves

Unlike forging, casting uses the liquid form of metal to create valves. These metals are melted into a molten liquid and poured into various molds depending on the casting technology used. Chaoda has our own foundry equipped with state-of-the-art technology that allows us to pour all castings for our valves in-house including exotic alloys.

One of the biggest benefits of casting is that it can create valves with complex shapes, patterns, and sizes. Using a mold to manufacture these devices gives you more freedom to make different types valves with more intricate parts.


For when you get exactly what you need.

Chaoda OS&Y gate valves are specifically design to industry standards for straight thru, bi-directional flow which results in low flow loss and low pressure drop. They are designed for applications where excellent flow conditions and tight shut-off are necessary. Our gate valves proudly service the oil/gas refining, pulp and paper, power generation and chemical/petrochemical industries worldwide.

We offer both Cast API 600 and API 603 design Gate valve designs in a wide range of sizes, pressure classes and materials to fit even the most unique and rugged applications on the planet!

Dimensions & Ranges

Design Options

  • Design Standard:
    API 600 or API 603

  • Size Range:
    2″ to 56″*

  • Pressure Range:
    Class 150 thru 2500 *

  • End Connections:
    Flanged RF & RTJ, Butt Weld *

  • Inspection and Testing:
    API 598 Leakage Test, API 624 Fugitive Emissions Test

  • Flanged End Dimensions:
    ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)

  • Butt Weld End Dimensions:
    ASME B16.25

  • Face to Face Dimensions:
    ASME B16.10

  • Pressure-Temperature Ratings:
    ASME B16.34

* Consult sales team for additional sizes, pressure classes and end connections.

Read More

Specification Sheet

See More

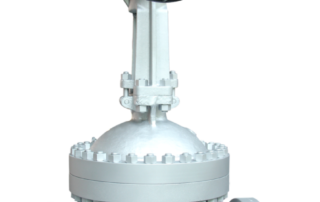

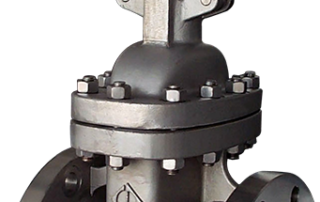

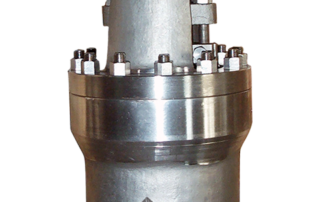

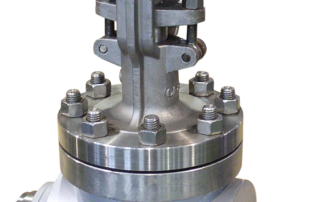

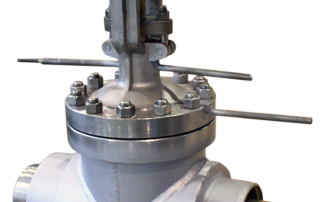

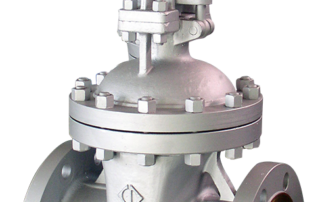

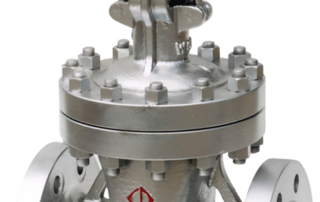

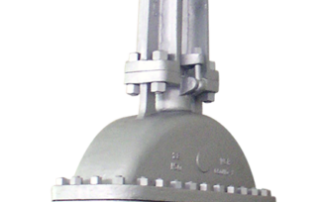

Related Images

We are one click away!

Chaoda USA is eager to hear from you! Let our experienced personnel help you solve your flow control problems.
