Revolutionary Design for Precision Flow

Soft Seated Floating Ball Valves

Employing the latest in processing technology and manufacturing automation, Chaoda offers high quality metal seated ball valves for service conditions where soft seats will simply not perform.

Discover unmatched precision and reliability with Chaoda’s Soft-Seated Floating Ball Valves, where cutting-edge technology meets exceptional craftsmanship to redefine fluid control excellence. Engineered to exceed industry standards, our Soft-Seated Floating Ball Valves offer a secure and tight seal, making them the ideal choice for applications where leakage is simply not an option.

Chaoda has a full range of floating ball valves in both 2-piece body and unibody design.

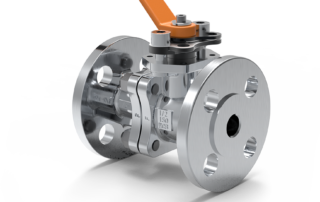

Take a Look Inside!

Superior Parts for a Superior Valve

1. Precision Machined Ball – Maximized sealing surface for reliable isolation.

2. Soft Seat Rings – For a perfect seal.

3. Two-Piece Body Design – Provides structural integrity.

4. Body Seal – For a leak-tight joint.

5. Dual Grounding Device – Antistatic design to prevent sparking.

6. Blowout Proof Stem – High strength consistent operating torque.

7. Thrust Washer – Helps ensure consistent operating torque.

8. Packing Washer – Helps ensure consistent loading of packing.

9. Stem Packing – Low-Emissions Compliant. Guaranteed.

10. Cast Steel Handle – For maximum strength.

11. Packing Gland – Provides adjustments for stem sealing.

12. Locking Device – For security when needed.

12. ISO Mounting Bracket – Standardized for ease of actuation.

13. End Connection – Flanged connection shown, other options available.

Dimensions & Ranges

Design Options

  • Design Standard:
    API 608, API 6D, ASME B16.34, API 607

  • Size Range:
    ½” to 10” *

  • Pressure Range:
    Class 150 thru 1500 *

  • End Connections:
    Flanged RF & RTJ, Butt Weld, Socket Weld, Threaded *

  • Inspection and Testing:
    API 598 test with no visible leakage, API 641

  • Flanged End Dimensions:
    ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)
  • Butt Weld End Dimensions:
    ASME B16.25

  • Face To Face Dimensions:
    ASME B16.10

  • Threaded End Dimensions:
    ASME B1.20.1

  • Pressure-Temperature Ratings:
    ASME B16.34

Refer to catalog for dimensional information.
*Consult sales team for additional sizes, pressure classes and end connections.

Read More

Specification Sheet

See More

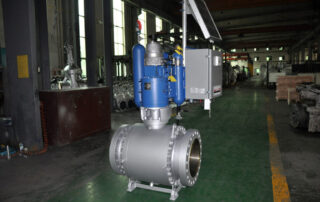

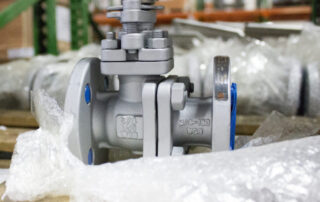

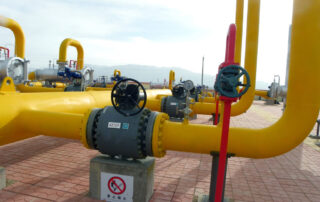

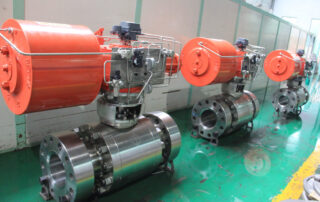

Related Images
