An Inline Backflow Preventer For Eliminating Leakage

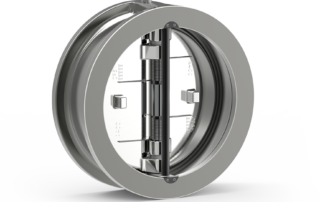

Cast Dual Plate Check Valve

Unlike forging, casting uses the liquid form of metal to create valves. These metals are melted into a molten liquid and poured into various molds depending on the casting technology used. Chaoda has our own foundry equipped with state-of-the-art technology that allows us to pour all castings for our valves in-house including exotic alloys.

One of the biggest benefits of casting is that it can create valves with complex shapes, patterns, and sizes. Using a mold to manufacture these devices gives you more freedom to make different types valves with more intricate parts.


For when you get exactly what you need.

Chaoda Dual Plate Check Valves are standard retainerless, eliminating a leak path compared with designs with external stems.

Dimensions & Ranges

Design Options

  • Design Standard:
    API 594, Retainerless

  • Size Range:
    2” to 84” *

  • Pressure Range:
    Class 150 thru 2500 *

  • End Connections:
    Wafer, Lug, Double Flanged *

  • Inspection and Testing:
    API 598 Leakage Test

  • Wafer and Lug Face to Face Dimensions:
    ASME B16.25

  • Flanged End Dimensions:
    ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)

  • Pressure-Temperature Ratings:
    ASME B16.34

* Consult sales team for additional sizes, pressure classes and end connections.

Read More

Specification Sheet

See More

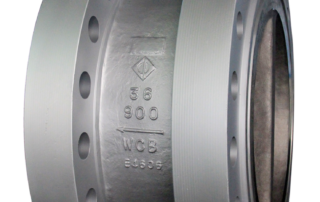

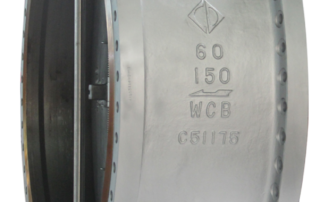

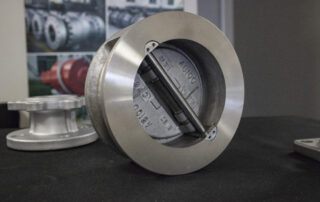

Related Images
